PlasterOne® No.1 · plastering machine & mixing pump

Mix. Pump. Spray.
One machine.

Quote within 24 h Rent

150 litre hopper.
Five 30 kg bags fit in at once.
Air and water on board.
The air compressor and the water pump are built in. Pressure switches and gauges sit openly on the frame.
Everything on one side.
Control panel, 400 volt connection and mortar outlet on the front end.
Built for the site.
Tubular frame, swivel castors, handle for manoeuvring. 1200 × 720 × 1505 mm, approx. 270 kg.

From fine plaster
to screed.

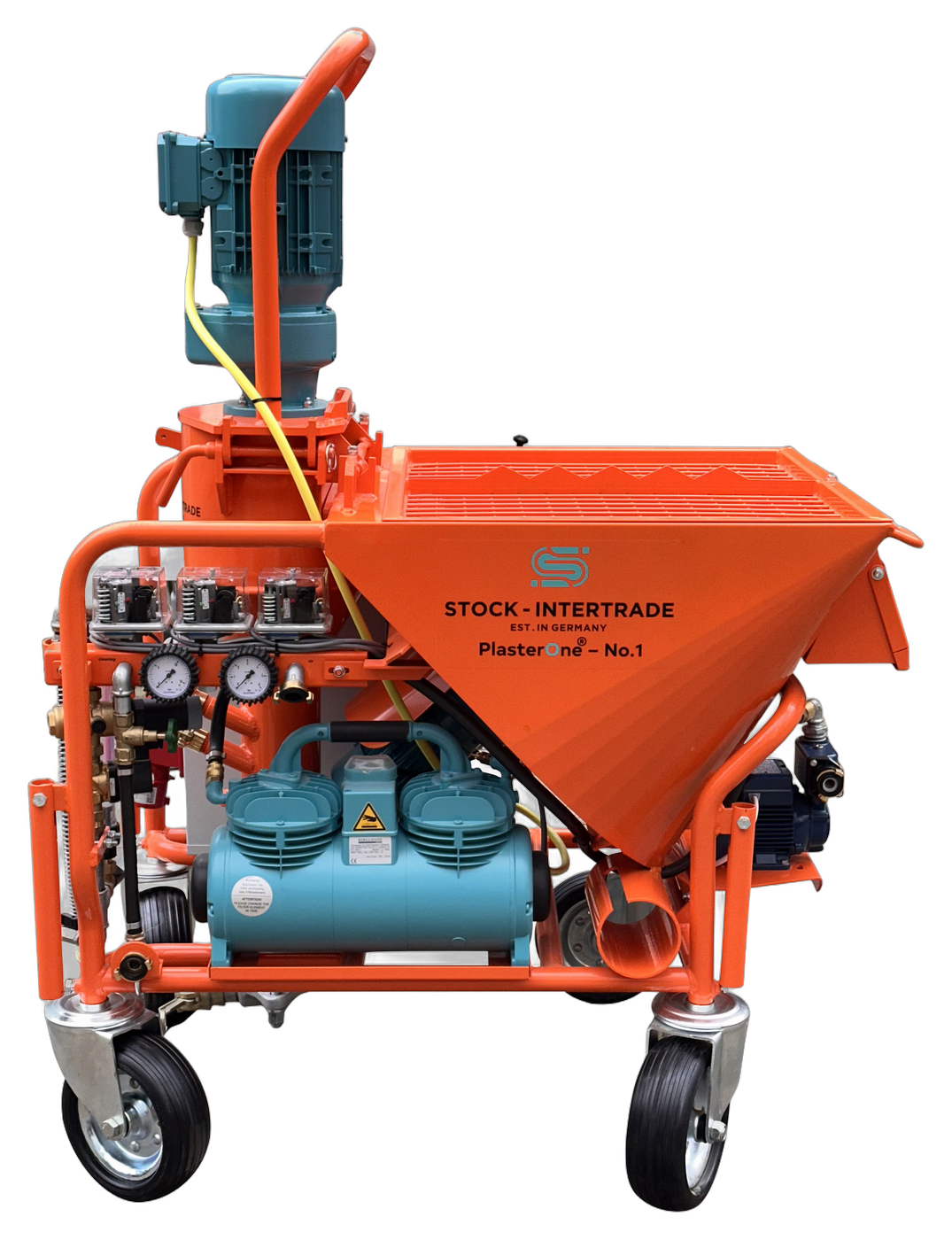

The PlasterOne® No.1 is a plastering machine built in Lübeck, Germany: a mixing pump that mixes dry mortar from bags or a silo, conveys it and sprays it onto the wall. It handles gypsum plaster, lime and lime-cement plaster as well as screed, and runs on D and R pump systems whose rotor and stator sizes also fit machines from PFT, Putzmeister and Uelzener.

85l/min Output with an R pump. With a D pump it meters finely from 3 l/min.

80m Conveying distance for screed, up the stairwell to the top floor.

40bar Maximum operating pressure. Driven by 6.0 kW.

From every side

Every side
has a job.

PlasterOne No.1, front view — **Front view**Hopper with grate, water pump below.

PlasterOne No.1, compressor side — **Compressor side**Air compressor, pressure switches and gauges.

PlasterOne No.1, front end — **Front end**Control panel, CEE connection and mortar outlet.

PlasterOne No.1, control box side — **Control box side**Control box, sockets and braked castors.

Air compressor, gauges and pressure switches of the No.1

Compressor on board.

Spray without a separate compressor: the air compressor is built into the frame of the No.1, with gauges and pressure switches right beside it.

A closer look.

Tap the points on the machine.

Geared motor

Sits on top above the hopper, easy to reach for service.

Control panel with switches and 400 volt connection — **Control panel**Switches, main switch and CEE connection on the front end.

Mortar hose, spray gun and rotor on the machine — **Accessories from stock**Hose, spray gun, rotor and stator are available from us as spare parts.

D or R.
You decide.

The No.1 runs on D and R pump systems. The rotor and stator pair decides how much material passes through the hose per minute.

D pumps3-35 l/minmeter more finely

R pumps20-85 l/minmore material per minute

Rotor & stator from stock

How fardoes the mortar travel?

Hose Ø 25 mm30 m

Hose Ø 35 mm50 m

Screed80 m

Figures from the PlasterOne® catalogue 2026. The actual distance depends on material, consistency and delivery height.

Technical data

Output: 3-35 l/min with D pumps
20-85 l/min with R pumps
Conveying distance: Ø 25 mm up to 30 m
Ø 35 mm up to 50 m
screed up to 80 m
Pump motor: 6.0 kW · approx. 400 rpm
Power supply: 400 V · 5 × 32 A
Operating pressure: max. 40 bar
Hopper volume: approx. 150 l (5 bags of 30 kg)
Equipment: Air compressor, water pump
Dimensions: 1200 × 720 × 1505 mm
Weight: approx. 270 kg

Which PlasterOne®suits you?

This page

Mixing pump

PlasterOne® No.1

Mixes and conveys in one step, with compressor and water pump.

Output: 3-85 l/min
Conveying distance: screed up to 80 m
Drive: 6.0 kW · 400 V
Hopper: approx. 150 l

Request a quote

Conveying pump

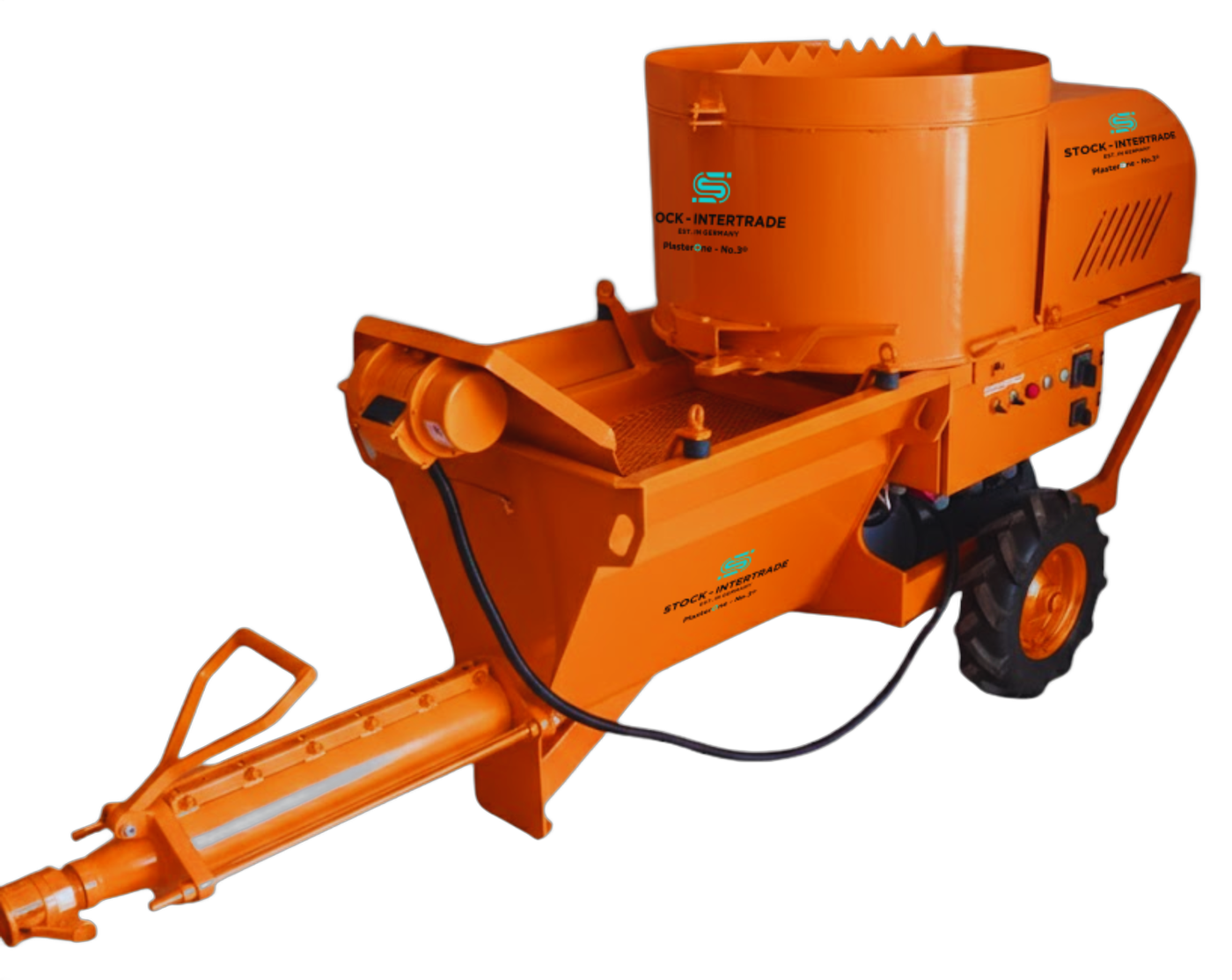

PlasterOne® No.3

Versatile and powerful. With a compressor it also works as a plastering machine.

Output: 7-40 l/min
Conveying distance: up to 60 m
Drive: 7.5 kW
Hopper: n/a

View

Horizontal mixer

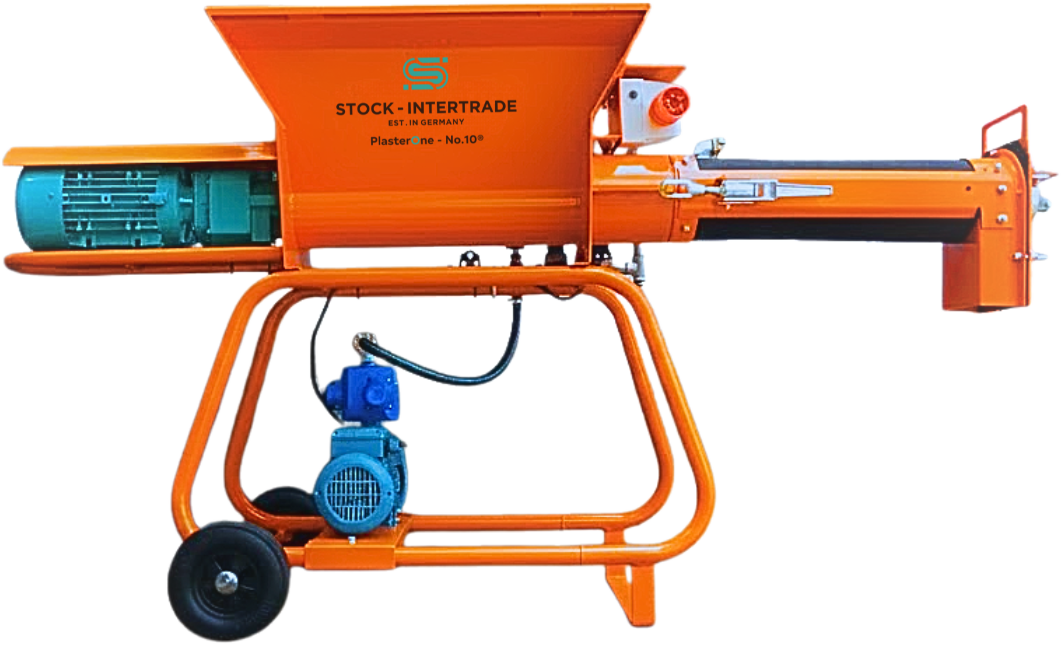

PlasterOne® No.10

Silo or bagged material through module technology, pre-mixes continuously.

Output: 25-50 l/min
Conveying distance: n/a
Weight: 109 kg
Hopper: n/a

View

Frequently asked
about the No.1

Your question is not here? We answer in person Monday to Friday, 7 am to 5 pm (CET).

+49 160 7695455

What power supply does the No.1 need?

The No.1 runs on 400 volts and connects through a CEE plug, 5 × 32 A. The pump motor delivers 6.0 kW.

How much material fits in the hopper?

The hopper holds about 150 litres, roughly five bags of 30 kg.

Which pumps fit the No.1?

The No.1 runs on D and R pump systems. With D pumps it delivers 3-35 l/min, with R pumps 20-85 l/min. We keep rotors and stators in the matching sizes in stock.

How far does the No.1 convey?

According to the catalogue: up to 30 m with a Ø 25 mm hose, up to 50 m with Ø 35 mm and up to 80 m with screed. The actual distance depends on material, consistency and delivery height.

Can I rent the No.1?

Yes. The machine is handed over tested, with an introduction included. You can collect it at Spenglerstraße 67 in Lübeck, or we deliver it to the site.

How fast do I get a quote?

You receive a quote within 24 hours, by email, phone or WhatsApp.
